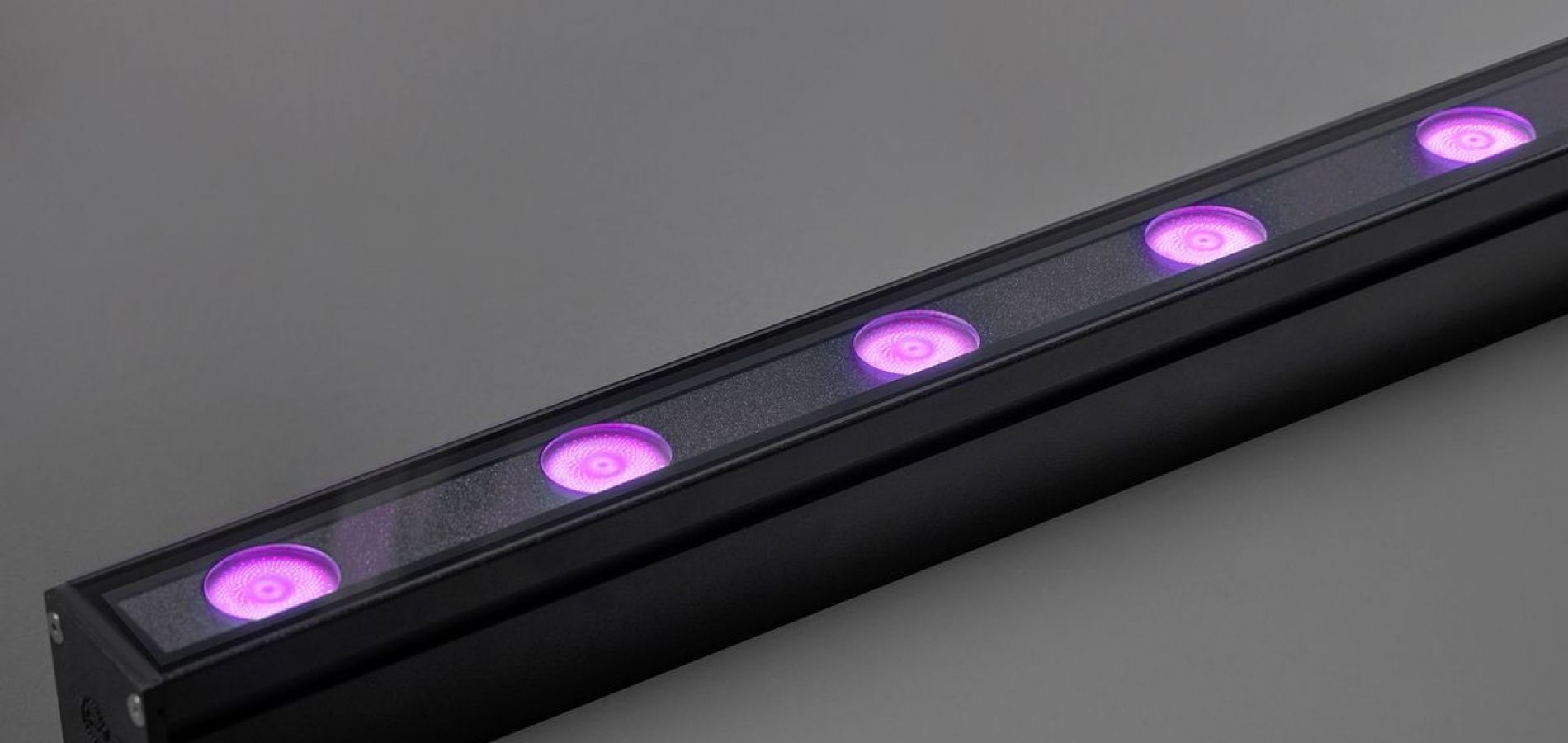

LINE fullcolor
LINE fullcolor offers more than 16 million bright, pure colors in the familiar compact and concise LINE device body. The ability to get any color you can imagine allows you to go beyond the usual in lighting design.
LINE fullcolor has the latest generation* power supply on board.
Luminaire lengths from 300 to 1500 mm, with a multiplicity of 300 mm, corresponding to the interaxial spans of the structures of modern buildings.
*in all versions except 300 mm with 24 V DC power supply
Features of the series
Download
Technical characteristics
optical
light color: | multichip RGBW |
optics: | 125°, 15°, 15x60°, 30°, 60° |
delivered lumen output: | 29 - 1900 lm |
color binning: | 2 MacAdam ellipses for white, +- 3 nm for color LEDs |
CRI: | ≥80 (for white) |
UGR: | <19 |
BUG: | |
Dark Sky: | compatible |
electrical
power factor Cos φ: | >0.9 |
wattage: | 5 - 52 W |
voltage: | 230V AC, 24 V DC |
electrical class: | I, III |
control
control: | available |
protocols: | DMX-512 + RDM |
pixel size: | 1 luminaire = 1 pixel |
integrated technologies
EternalTechnology®
ColorPro®
Aquatech™
Truelight™
COOLight™
operational
ingress protection: | IP66 |
mechanical protection: | IK08 |
operating temperature: | -40°С ... +55°С |
lifespan: | not less than 50 000 hours |
additionally
materials: | housing — extruded aluminum profile,
covered with powder paint
protective glass — tempered silicate glass
end caps — die cast aluminum,
covered with powder paint
brackets — aluminum alloy,
steel/zink-plated steel, covered with powder paint
metalware — stainless steel |
lengths: | 300 mm, 600 mm, 900 mm, 1200 mm, 1500 mm |
dimensions: | 72 / 76 х 58 mm |
weight: | up to 5,7 kg |
customization: | IP68 connectors;
through-wiring;
cable length up to 5 m;
48 V DC voltage;
tunable white (TW) version;
painting body in any RAL color;
product length, light distribution curve, light color, wattage and luminous flux can be customized for a specific project.
|
certification: | CE, EAC |
standard coating type
M - moire
standard RAL colors
RAL1001
RAL1015
RAL7016
RAL8004
RAL8017
RAL9003
RAL9005
RAL9006
1. Pick up the right model
You can pick up the exact model using the filters
| code | light color | W | lm | optics, deg | control | ies-file | datasheet | drawing |
|---|---|---|---|---|---|---|---|---|
|
code:
ILF3-2FC-15RL24-30(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
50
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15RL24-30(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
250
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15RL24-30(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
44
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15RL24-30(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
380
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15RL24-30(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
240
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RL24-30(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
50
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RL24-30(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
250
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RL24-30(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
44
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RL24-30(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
380
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RL24-30(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
240
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RL24-30(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
50
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RL24-30(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
250
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RL24-30(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
44
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RL24-30(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
380
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RL24-30(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
240
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15RH-60(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
12
|
lm:
100
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15RH-60(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
17
|
lm:
500
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15RH-60(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
15
|
lm:
85
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15RH-60(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
15
|
lm:
750
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15RH-60(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
22
|
lm:
480
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-30RH-60(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
12
|
lm:
100
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-30RH-60(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
17
|
lm:
500
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-30RH-60(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
15
|
lm:
85
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-30RH-60(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
15
|
lm:
750
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-30RH-60(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
22
|
lm:
480
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-60RH-60(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
12
|
lm:
100
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-60RH-60(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
17
|
lm:
500
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-60RH-60(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
15
|
lm:
85
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-60RH-60(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
15
|
lm:
750
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-60RH-60(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
22
|
lm:
480
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-125RH-60(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
12
|
lm:
65
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-125RH-60(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
17
|
lm:
330
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-125RH-60(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
15
|
lm:
55
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-125RH-60(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
15
|
lm:
490
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-125RH-60(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
22
|
lm:
310
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15x60RH-60(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
12
|
lm:
100
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15x60RH-60(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
17
|
lm:
500
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15x60RH-60(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
15
|
lm:
85
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15x60RH-60(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
15
|
lm:
750
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF6-2FC-15x60RH-60(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
22
|
lm:
480
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15RH-90(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
17
|
lm:
160
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15RH-90(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
26
|
lm:
750
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15RH-90(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
23
|
lm:
130
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15RH-90(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
23
|
lm:
1150
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15RH-90(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
32
|
lm:
700
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-30RH-90(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
17
|
lm:
160
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-30RH-90(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
26
|
lm:
750
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-30RH-90(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
23
|
lm:
130
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-30RH-90(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
23
|
lm:
1150
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-30RH-90(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
32
|
lm:
700
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-60RH-90(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
17
|
lm:
160
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-60RH-90(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
26
|
lm:
750
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-60RH-90(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
23
|
lm:
130
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-60RH-90(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
23
|
lm:
1150
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-60RH-90(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
32
|
lm:
700
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-125RH-90(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
17
|
lm:
100
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-125RH-90(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
26
|
lm:
490
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-125RH-90(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
23
|
lm:
85
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-125RH-90(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
23
|
lm:
750
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-125RH-90(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
32
|
lm:
460
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15x60RH-90(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
17
|
lm:
160
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15x60RH-90(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
26
|
lm:
750
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15x60RH-90(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
23
|
lm:
130
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15x60RH-90(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
23
|
lm:
1150
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF9-2FC-15x60RH-90(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
32
|
lm:
700
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15RH-120(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
23
|
lm:
210
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15RH-120(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
34
|
lm:
1000
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15RH-120(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
30
|
lm:
180
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15RH-120(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
30
|
lm:
1500
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15RH-120(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
43
|
lm:
950
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-30RH-120(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
23
|
lm:
210
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-30RH-120(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
34
|
lm:
1000
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-30RH-120(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
30
|
lm:
180
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-30RH-120(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
30
|
lm:
1500
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-30RH-120(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
43
|
lm:
950
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-60RH-120(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
23
|
lm:
210
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-60RH-120(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
34
|
lm:
1000
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-60RH-120(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
30
|
lm:
180
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-60RH-120(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
30
|
lm:
1500
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-60RH-120(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
43
|
lm:
950
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-125RH-120(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
23
|
lm:
140
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-125RH-120(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
34
|
lm:
650
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-125RH-120(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
30
|
lm:
120
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-125RH-120(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
30
|
lm:
1000
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-125RH-120(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
43
|
lm:
600
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15x60RH-120(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
23
|
lm:
210
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15x60RH-120(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
34
|
lm:
1000
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15x60RH-120(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
30
|
lm:
180
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15x60RH-120(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
30
|
lm:
1500
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF12-2FC-15x60RH-120(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
43
|
lm:
950
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15RH-150(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
28
|
lm:
260
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15RH-150(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
41
|
lm:
1250
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15RH-150(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
36
|
lm:
220
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15RH-150(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
36
|
lm:
1900
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15RH-150(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
52
|
lm:
1200
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-30RH-150(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
28
|
lm:
260
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-30RH-150(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
41
|
lm:
1250
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-30RH-150(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
36
|
lm:
220
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-30RH-150(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
36
|
lm:
1900
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-30RH-150(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
52
|
lm:
1200
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-60RH-150(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
28
|
lm:
260
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-60RH-150(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
41
|
lm:
1250
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-60RH-150(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
36
|
lm:
220
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-60RH-150(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
36
|
lm:
1900
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-60RH-150(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
52
|
lm:
1200
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-125RH-150(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
28
|
lm:
170
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-125RH-150(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
41
|
lm:
800
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-125RH-150(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
36
|
lm:
140
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-125RH-150(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
36
|
lm:
1250
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-125RH-150(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
52
|
lm:
800
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15x60RH-150(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
28
|
lm:
260
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15x60RH-150(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
41
|
lm:
1250
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15x60RH-150(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
36
|
lm:
220
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15x60RH-150(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
36
|
lm:
1900
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF15-2FC-15x60RH-150(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
52
|
lm:
1200
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RL24-30(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
50
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RL24-30(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
250
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RL24-30(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
44
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RL24-30(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
380
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RL24-30(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
240
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RL24-30(10P02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
33
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RL24-30(10P02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
160
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RL24-30(10P02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
29
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RL24-30(10P02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
250
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RL24-30(10P02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
160
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15RH-30(10E02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
50
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15RH-30(10E02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
250
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15RH-30(10E02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
44
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15RH-30(10E02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
380
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15RH-30(10E02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
240
|
optics, deg:
15
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RH-30(10E02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
50
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RH-30(10E02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
250
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RH-30(10E02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
44
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RH-30(10E02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
380
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-30RH-30(10E02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
240
|
optics, deg:
30
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RH-30(10E02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
50
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RH-30(10E02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
250
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RH-30(10E02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
44
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RH-30(10E02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
380
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-60RH-30(10E02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
240
|
optics, deg:
60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RH-30(10E02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
33
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RH-30(10E02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
160
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RH-30(10E02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
29
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RH-30(10E02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
250
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-125RH-30(10E02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
160
|
optics, deg:
125
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RH-30(10E02)
|
light color:
RGBW multichip (red mode)
|
W:
5
|
lm:
50
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RH-30(10E02)
|
light color:
RGBW multichip (green mode)
|
W:
7,5
|
lm:
250
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RH-30(10E02)
|
light color:
RGBW multichip (blue mode)
|
W:
6,5
|
lm:
44
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RH-30(10E02)
|
light color:
RGBW multichip (white mode)
|
W:
6,5
|
lm:
380
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
| |||
|
code:
ILF3-2FC-15x60RH-30(10E02)
|
light color:
RGBW multichip (all in mode)
|
W:
9,5
|
lm:
240
|
optics, deg:
15x60
|
control:
DMX-512 + RDM
|
2. Break down the code
ILF3-2FC-15RH-30(10E02)
ILF3
I - INTILED
body type
L - linear
mounting
F- surface mounted
quantity of LEDs
3 - 3 LEDs
2FC
power of single LED
2 - 2 Watts
light color
FC - fullcolor with multichip LEDs (from 3 to 6-in-1 LEDs)
15RH
light beam
15 - symmetrical optics 15 per 15 degrees
15х60 - oval optics 15 per 60 degrees etc.
control
- - on/off
A - digital DALI for 230 V AC
B - digital DALI for 24/48 V DC
C - digital DMX-512
D - dimming via PWM
R - digital DMX-512 with RDM
voltage
H - 230 V AC
L12 - 12 V DC
L24 - 24 V DC
L48 - 48 V DC
30(10E02)
length (just for linear luminaires)
30 - 300 mm
extra optical parameters
0 - transparent silicate tempered glass (no extra accessories)
1 - transparent silicate tempered glass with inner diffuser
5 - transparent silicate tempered glass with inner diffuser with light-diffusing polycarbonate (90% light transmittance)
6 - sandblasted silicate tempered glass (from one or both sides)
7 - matte polycarbonate
Н0 - transparent silicate tempered glass with inner honeycomb
L1 - transparent silicate tempered glass with inner vertical microlouvre and diffuser
L2 - transparent silicate tempered glass with inner vertical microlouvre
L3 - louvres type А and type B
extra constructive parameters
0 - no brackets included
1 - brackets included
extra commutation parameters
1 - cable output from the left, no connectors, 1 meter length
P0x/Px - pass-through connection, with connectors, cable output from the side (0x/x - cable length in decimeters/meters)
K0x/Kx - pass-through connection, no connectors, cable output from the side (0x/x - cable length in decimeters/meters)
KR1 - cable output from the right, no connectors, 1 meter length
R0x/Rx - no-go connection with "plug" connector, from the right (0x/x - cable length in decimeters/meters)
E0x/Ex - no-go connection with "plug" connector, from the left (0x/x - cable length in decimeters/meters)
S1 - cable output from the center, no connectors, 1 meter length
SL1 - left side cable outlet, no connectors, 1 meter length
SR1 - right side cable outlet, no connectors, 1 meter length
B0x/Bx - pass-through connection, from the bottom (0x/x - cable length in decimeters/meters)
BKLx - cable outlet from the bottom left, no connectoras, х meters length
PR0x/PRx - pass-through connection with connectors, from thw side, "plug" from the right (0x/x - cable length in decimeters/meters)
K0 - pass-through connection, no connectors, from the side, custom cable length
3. Choose accessories and control system devices
-
brackets:LINE-01-036 - 36 mm distance, aluminum + steelLINE-01-060 - 60 mm distance, aluminum + steelLINE-01-120 - 120 mm distance, aluminum + steelLINE-01-200 - 200 mm distance, aluminum + steelLINE-01-300 - 300 mm distance, aluminum + steelLINE-01-400 - 400 mm distance, aluminum + steelLINE-01-550 - 550 mm distance, aluminum + steelLINE-01A-036 - 36 mm distance, aluminum + stainless steelLINE-01A-060 - 60 mm distance, aluminum + stainless steelLINE-01A-120 - 120 mm distance, aluminum + stainless steelLINE-01A-200 - 200 mm distance, aluminum + stainless steelLINE-01A-300 - 300 mm distance, aluminum + stainless steelLINE-01A-400 - 400 mm distance, aluminum + stainless steelLINE-02A-500 - 500 mm distance, stainless steel, L-shapedLINE-03A-060 - 60 mm distance, stainless steel, vibration-resistantLINE-04-020 - 20 mm distance, non-rotatingLINE-04A-020 - 20 mm distance, non-rotating, stainless steel
-
safety ropes:LINE-01-15 - 150 mm length
-
screens:LINE-03-050-(X) - 50 mm height, (X) - 30, 60, 90, 120, 150 cm lengths
-
compatible control system devices::LIGHTCAD software key x2LIGHTCAD software key x8LIGHTCAD software key x32LIGHTCAD software key x64LIGHTCAD software key x128LIGHTCAD software key x512Controller LED-IPCeController LED-IPCsConverter U-Box 8Converter U-Box 4Converter Din-Box 8Converter Din-Box 6Converter Din-Box 2Splitter DMX (B1T2)Splitter DMX (B4)Converter UCS-ILCS
Specific features
more than 16 million colors
that means perfect possibility to achieve EXACTLY the needed color
advanced control
the fastest ever control via DMX+RDM protocol allows for achieving perfect dynamic lighting effects and detailed feedback from the luminaires onsite
“220 V AC” in a super-compact package
there is the most up-to-date power supply system with a high degree of protection on board
IN PROJECTS
Due to the constant renewal of our model range and improving technical characteristics the technical intormation can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your INTILED manager.
