SITE

Professional lighting fixture for façade, functional, and landscape lighting. When mounted on a façade, the unique optical system creates a wall-washing of the façade surface as well as lighting the pedestrian area.

Features of the series

high-efficiency WICOP LEDs

2 versions of optics: 40a110 and 60a140 provides high variety of applications

low GR and BUG ratings: B3U0G3 for 40a110 and B1U0G1 for 60a140

Download

SITE series presentation

SITE dimensional drawing

SITE series ies-files

download all materials

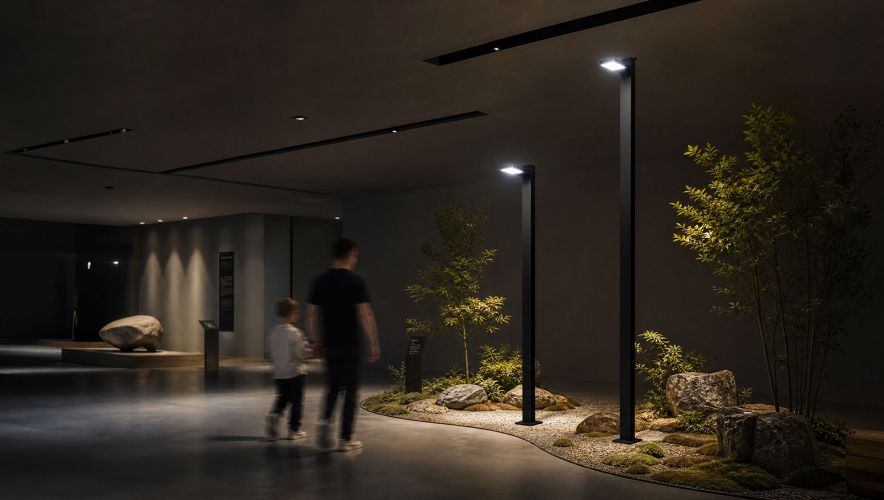

Application

Technical characteristics

optical

light color:	white (2700 K, 3000 К, 4000 К, 5000 К)
optics:	40a110°, 60a140°
delivered lumen output:	2500 - 5800 lm
color binning:	2 MacAdam steps
CRI:	≥80
UGR:	<19
BUG:	B3U0G3 for 40a110 B1U0G1 for 60a140
Dark Sky:	compatible

electrical

power factor Cos φ:	>0.9
wattage:	25 - 48 W
voltage:	230 V AC
electrical class:	I

standard coating type

M - moire

control

control:

on/off

operational

ingress protection:	IP66
mechanical protection:	IK08
operating temperature:	-40°С ... +55°С
lifespan:	not less than 50 000 hours

additionally

materials:	luminaire, bracket — cast aluminum diffuser — silicate glass
dimensions:	210x393x48 mm. Distance from the mounting surface to the light-emitting center - 255 mm
weight:	4,8-5,5 kg
customization:	LoRa control; painting body in any RAL color; tunable white (TW) version.
certification:	CE, EAC

standard RAL colors

RAL1001

RAL1015

RAL7016

RAL8004

RAL8017

RAL9003

RAL9005

RAL9006

1. Pick up the right model

You can pick up the exact model using the filters

code	light color	W	lm	optics, deg	control	ies-file	datasheet	drawing
code: IMF16-1,5W27-40a110H	light color: White 2700 K	W: 25	lm: 2500	optics, deg: 40a110	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF16-1,5W30-40a110H	light color: White 3000 K	W: 25	lm: 2500	optics, deg: 40a110	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF16-1,5W40-40a110H	light color: White 4000 K	W: 25	lm: 2800	optics, deg: 40a110	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF16-1,5W50-40a110H	light color: White 5000 K	W: 25	lm: 2800	optics, deg: 40a110	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF16-1,5W27-60a140H	light color: White 2700 K	W: 25	lm: 2700	optics, deg: 60a140	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF16-1,5W30-60a140H	light color: White 3000 K	W: 25	lm: 2700	optics, deg: 60a140	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF16-1,5W40-60a140H	light color: White 4000 K	W: 25	lm: 3000	optics, deg: 60a140	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF16-1,5W50-60a140H	light color: White 5000 K	W: 25	lm: 3000	optics, deg: 60a140	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF24-2W27-40a110H	light color: White 2700 K	W: 48	lm: 4750	optics, deg: 40a110	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF24-2W30-40a110H	light color: White 3000 K	W: 48	lm: 4750	optics, deg: 40a110	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF24-2W40-40a110H	light color: White 4000 K	W: 48	lm: 5300	optics, deg: 40a110	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF24-2W50-40a110H	light color: White 5000 K	W: 48	lm: 5300	optics, deg: 40a110	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF24-2W27-60a140H	light color: White 2700 K	W: 48	lm: 5200	optics, deg: 60a140	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF24-2W30-60a140H	light color: White 3000 K	W: 48	lm: 5200	optics, deg: 60a140	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF24-2W40-60a140H	light color: White 4000 K	W: 48	lm: 5800	optics, deg: 60a140	control: On/Off	ies-file:	datasheet:	drawing:
code: IMF24-2W50-60a140H	light color: White 5000 K	W: 48	lm: 5800	optics, deg: 60a140	control: On/Off	ies-file:	datasheet:	drawing:

2. Break down the code

IMF16 - 1,5W27 - 40a110H

IMF16

I - INTILED

body type

M - matrix

mounting

F - on the bracket

quantity of LEDs

16 - 16 LEDs

1,5W27

power of single LED

1,5 - 1,5 Watt

light color

W(X) - white with temperature (X)00 K
A - amber
R - red
G - green
B - blue
RGB - discrete red, green, blue LEDs
RGBW - discrete red, green, blue and white LEDs
FC - fullcolor with multichip LEDs (from 3 to 6-in-1 LEDs)
W(X)W(Y) - white with 2 temperatures of white light: X00 K and Y00 K
TW - tunable white from 2700 K to 6500 K

40a110H

light beam

40a110H - asymmetrical optics 40° per 110°

voltage

H - 230 V AC
T - power supply with DC stabilization

Specific features

visual comfort

highest visual comfort without any discolorations or unneeded effects

mounting variety

surface-mounted version for facades and several bollard versions create a stylistic harmony

variety of color options

including different combinations of housing and diffuser color
