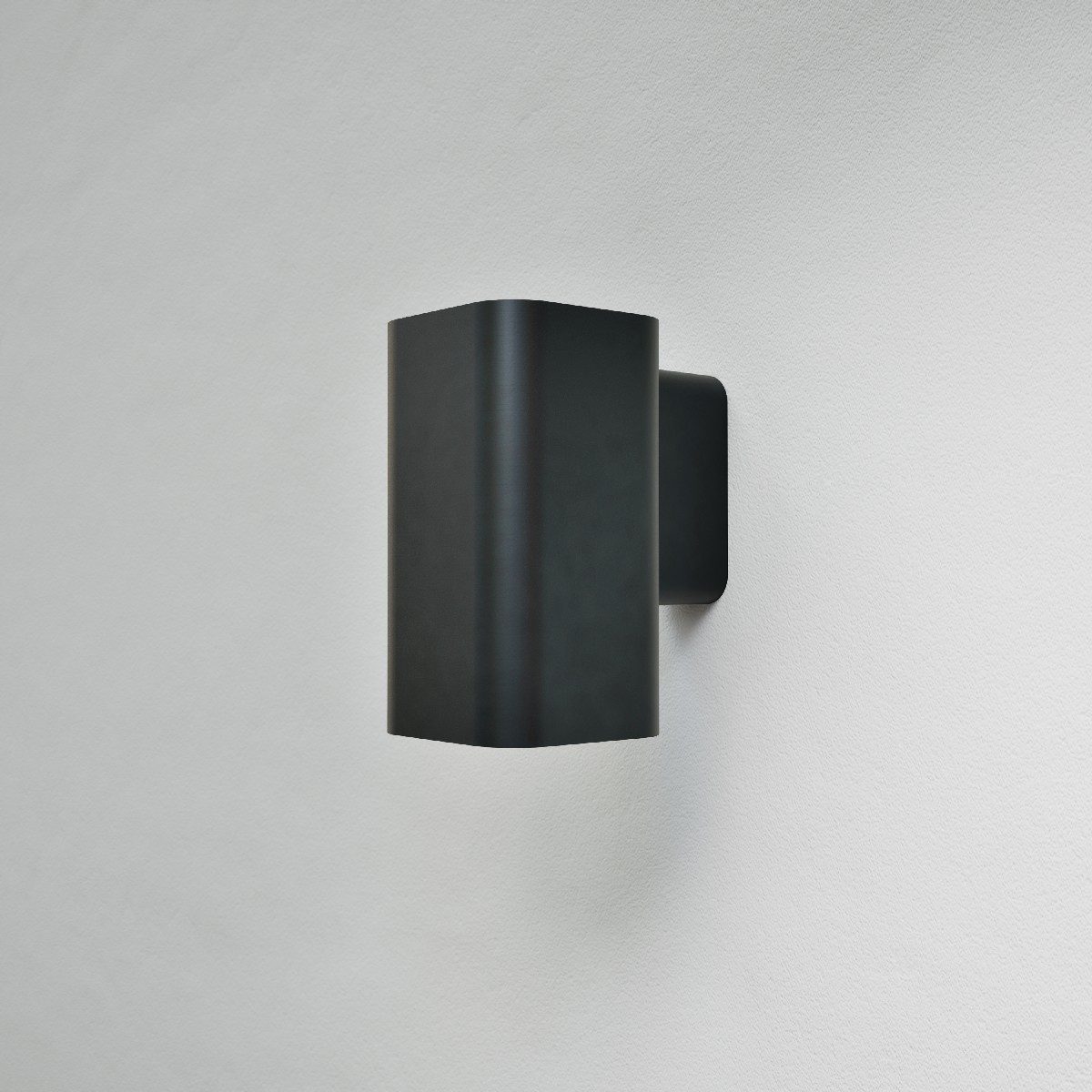

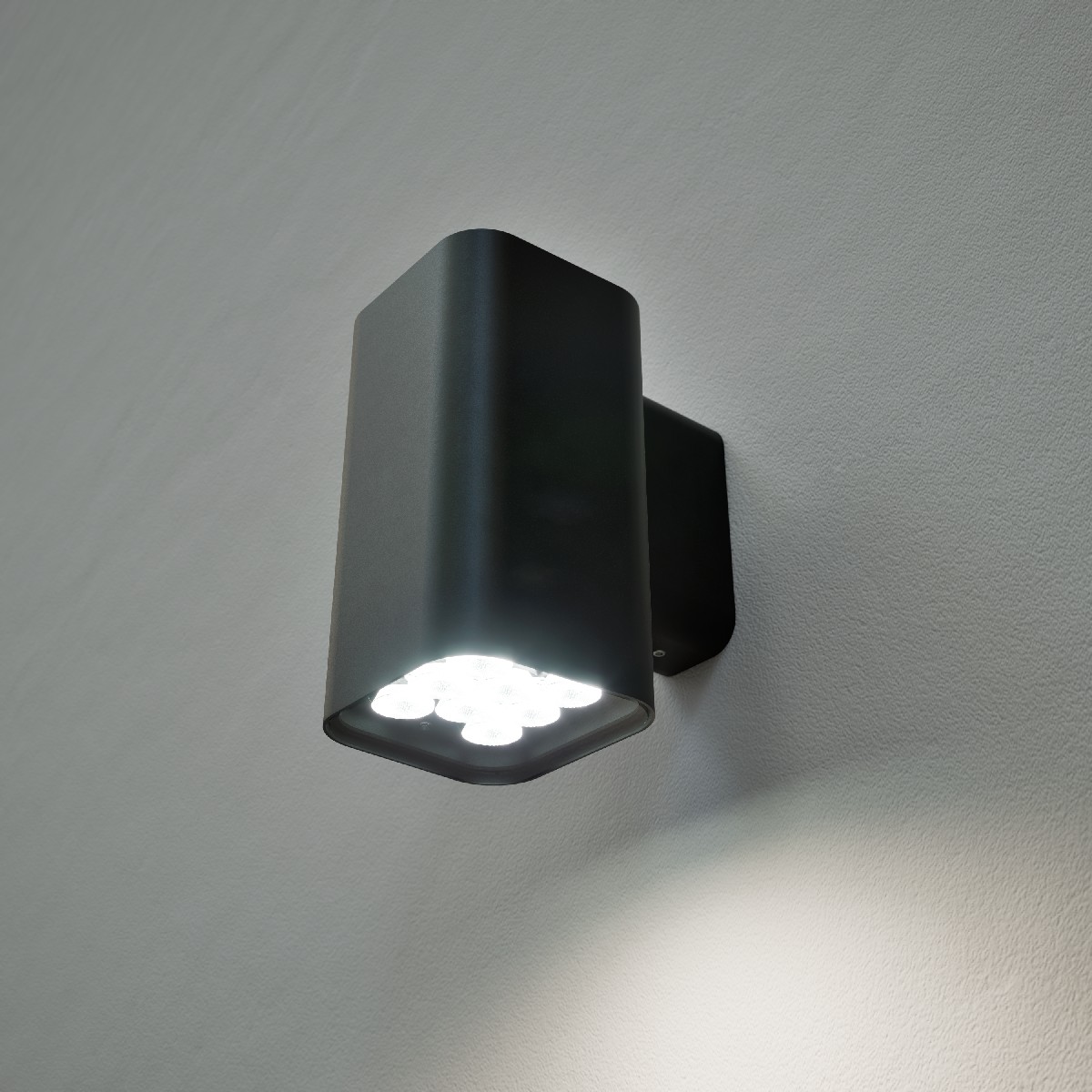

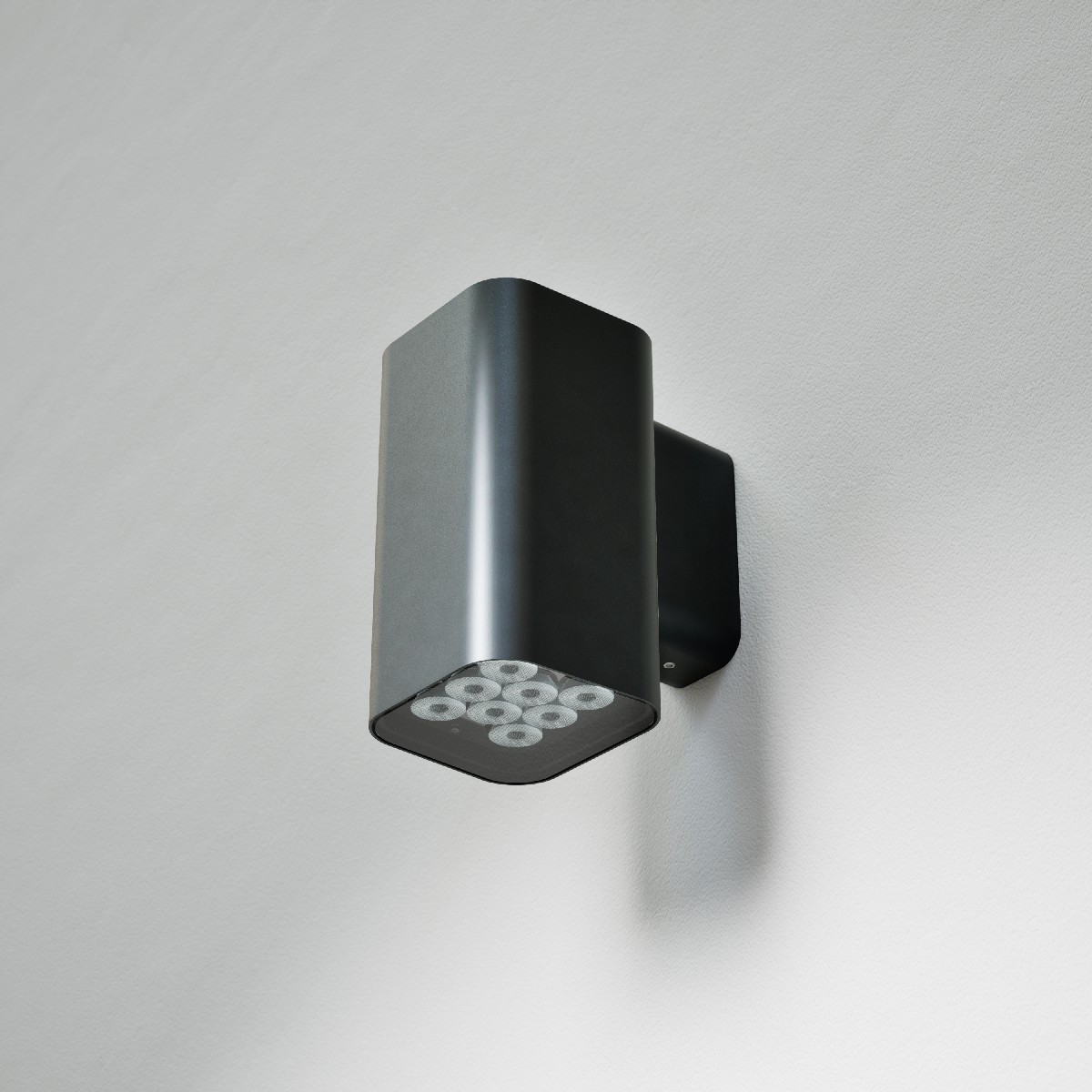

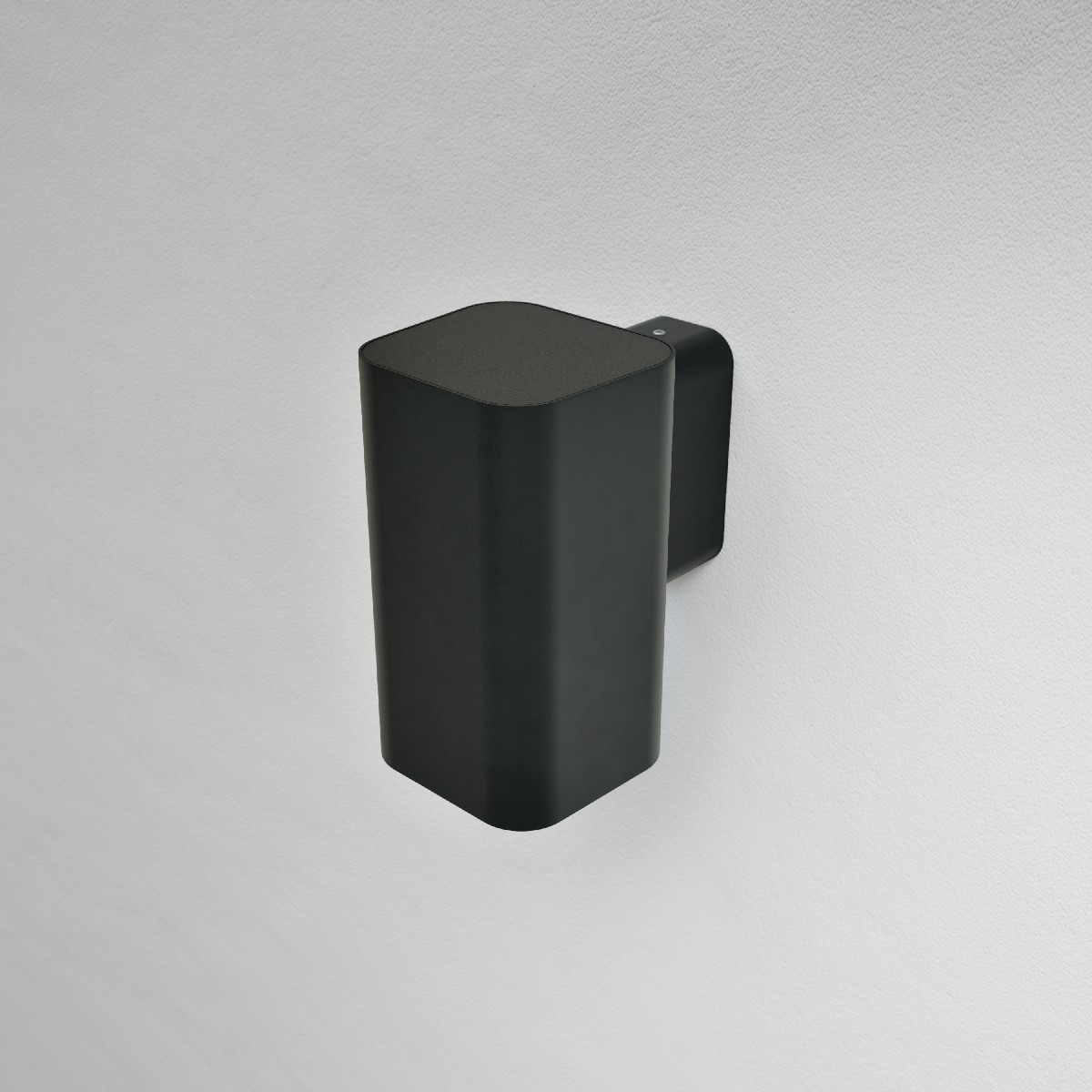

TWIN-lite

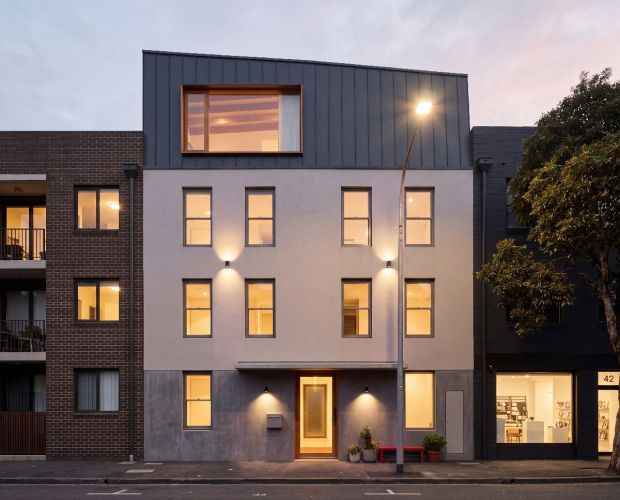

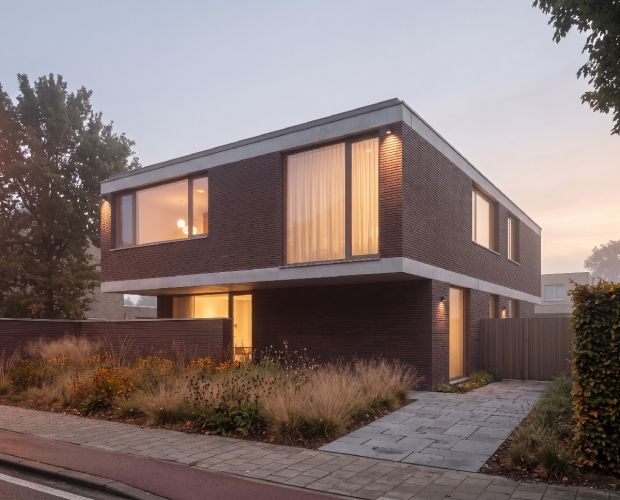

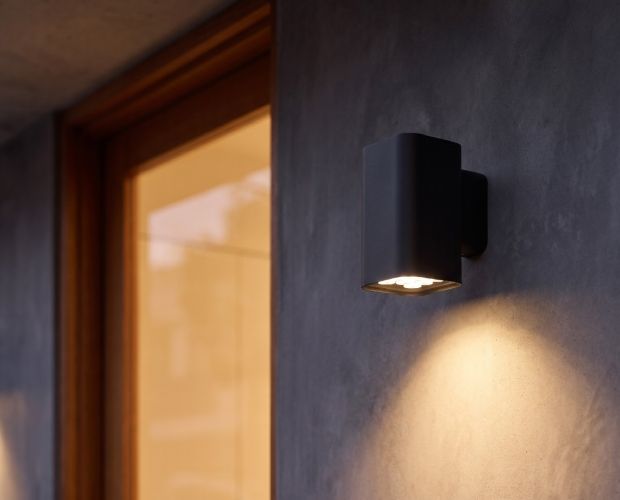

TWIN-lite is a single-sided version of the TWIN luminaire. It is designed for façades in areas located in close proximity to the observer, where the highest level of aesthetic quality and consistency in the form and lighting effects of the luminaires is required.
Features of the series
Download
optical
light color: | white (2700 К, 3000 К, 4000 К, 5000 К), red, green, blue, amber |
optics: | 15°, 30°, 65°, 125°, 10a30°, 15x50° |
delivered lumen output: | 130 - 1000 lm |
color binning: | 2 MacAdam steps for white, ±3 nm for color LEDs |
CRI: | ≥80 (for white) |
UGR: | <19 |
BUG: | |
Dark Sky: | compatible |
electrical
power factor Cos φ: | >0.9 |
wattage: | 7,5 - 11 W |
voltage: | 230 V AC |
electrical class: | I |
control
control: | on/off |
integrated technologies
operational
ingress protection: | IP66 |
mechanical protection: | IK08 |
operating temperature: | -40°С ... +55°С |
lifespan: | not less than 50 000 hours |
additionally
materials: | housing, bracket — extruded aluminum;
diffuser — silicate tempered glass. |
dimensions: | 103х155х180 mm |
weight: | 2 kg |
customization: | 12, 24, 48 V DC voltage;
cable length up to 5 m;
IP68 connectors;
painting body in any RAL color;
light distribution curve, light color, wattage and luminous flux can be customized for a specific project.
|
certification: | CE, EAC |
standard coating type
M - moire
accessories
Customized accessories are manufactured according to the project
standard RAL colors

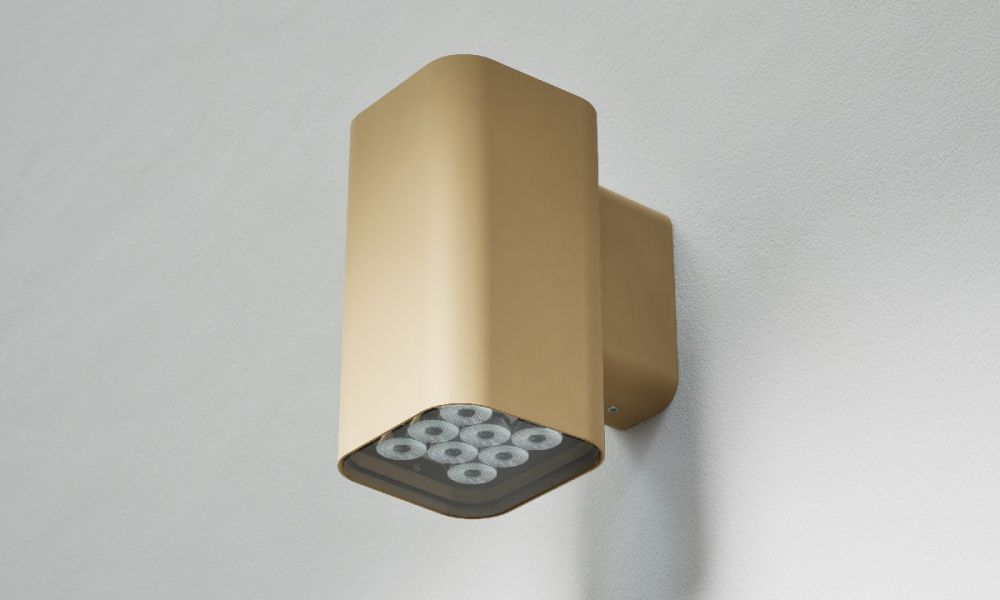

RAL1001

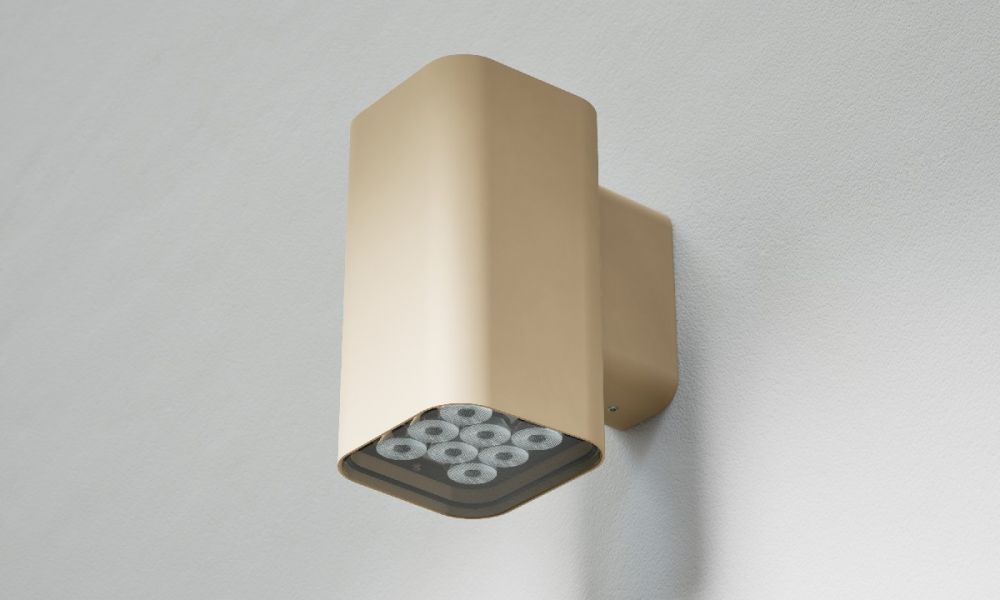

RAL1015

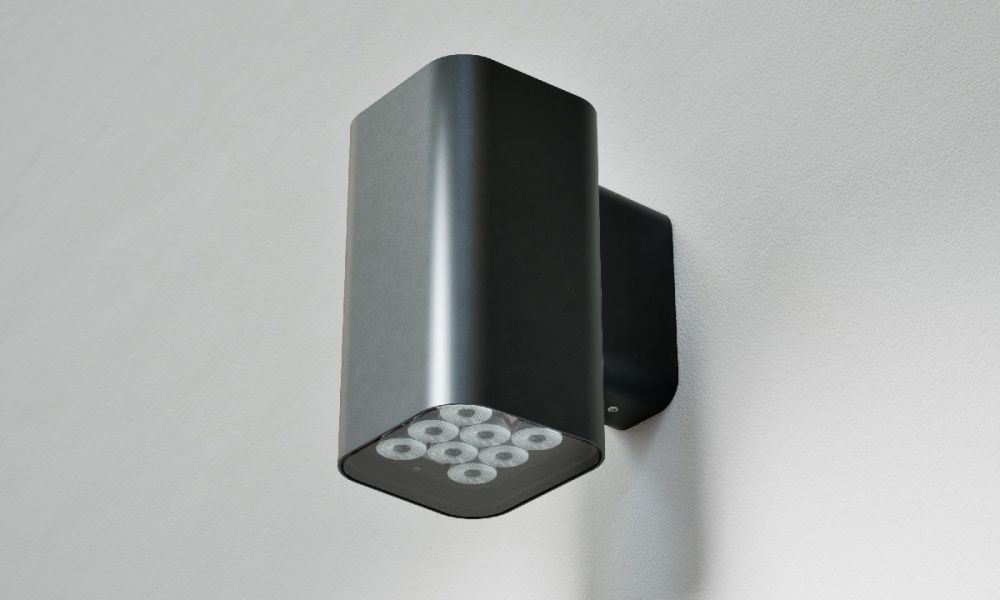

RAL7016
RAL8004
RAL8017

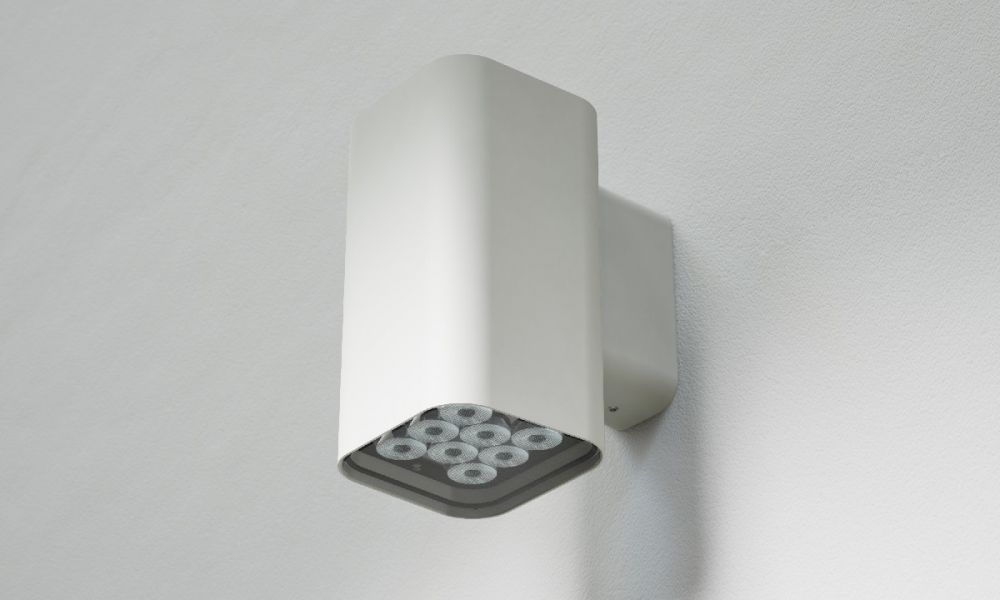

RAL9003
RAL9005
