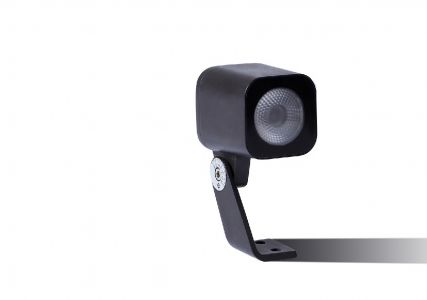

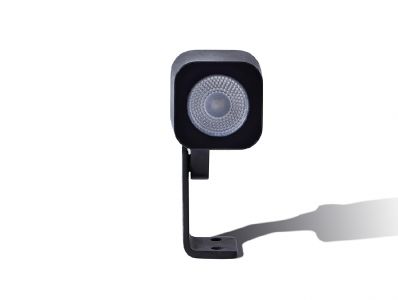

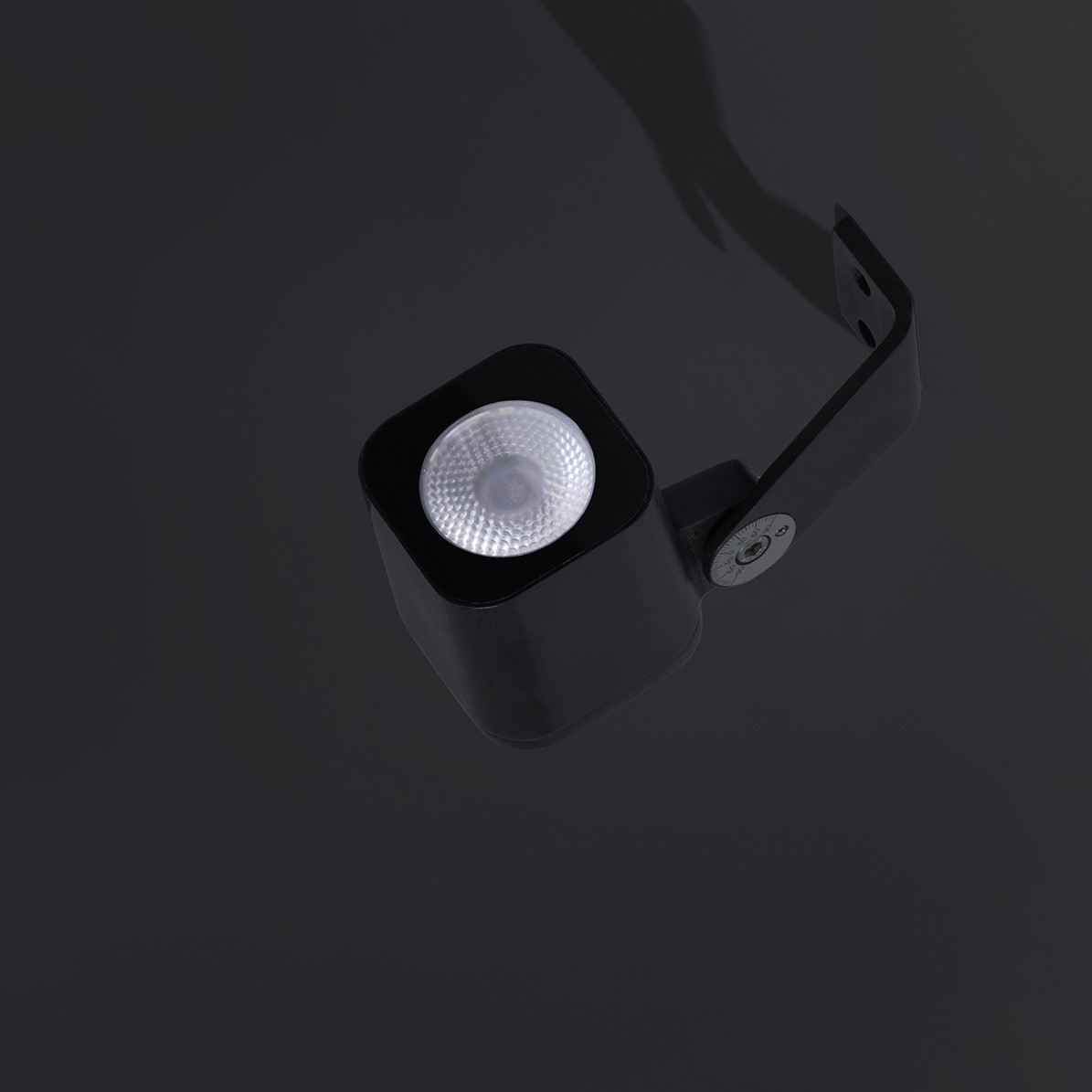

SPOT is the new version of IntiSPOT accent luminaire. Fresh design + all latest INTILED technologies onboard = perfect flexible tool for various accent lighting applications.
SPOT
CHOOSE THE LUMINAIRE
| name* | color | W | lm | optics, deg | datasheet | |
| start typing | choose | choose | choose | choose | ||
| IMF1-4W30-15DL24 | 3000К | 4.5 | 300 | 15 |  | |
| IMF1-4W30-30DL24 | 3000К | 4.5 | 290 | 30 | | |
| IMF1-4W30-40DL24 | 3000К | 4.5 | 280 | 40 | | |
| IMF1-4W30-120DL24 | 3000К | 4.5 | 280 | 120 | | |
| IMF1-4W30-15x60DL24 | 3000К | 4.5 | 290 | 15x60 | | |
| IMF1-4W40-15DL24 | 4000К | 4.5 | 330 | 15 | | |
| IMF1-4W40-30DL24 | 4000К | 4.5 | 320 | 30 | | |
| IMF1-4W40-40DL24 | 4000К | 4.5 | 310 | 40 | | |
| IMF1-4W40-120DL24 | 4000К | 4.5 | 310 | 120 | | |
| IMF1-4W40-15x60DL24 | 4000К | 4.5 | 320 | 15x60 | | |
| IMF1-4W50-15DL24 | 5000К | 4.5 | 330 | 15 | | |
| IMF1-4W50-30DL24 | 5000К | 4.5 | 320 | 30 | | |
| IMF1-4W50-40DL24 | 5000К | 4.5 | 310 | 40 | | |
| IMF1-4W50-120DL24 | 5000К | 4.5 | 310 | 120 | | |
| IMF1-4W50-15x60DL24 | 5000К | 4.5 | 320 | 15x60 | |
TECHNICAL SPECIFICATION
light color: | white (3000 К, 4000 К, 5000 К) |
optics: | 15°, 30°, 40°, 120°, 15x60° |
luminous flux: | up to 330 lm |
CRI: | ≥80 |
wattage: | 4,5 W |
voltage: | 24 V DC |
protection class: | IP66 |
operating temperature: | tropical edition: -40°С ... +55°С
standard edition: -40°С ... +45°С |
lifespan: | not less than 50000 hours |
control: | PWM |
dimensions: | 97x70x90 - without bracket;
143х69x110 - with bracket |
weight: | 0,6 kg |
materials: | housing, bracket – die-cast aluminum;
diffusor – tempered glass |
mounting: | on an adjustable bracket |
customization: | housing and accessories painted in any RAL color;
IP68 connectors;
control/power cables of any length up to 3 m |
contents of delivery: | luminaire, passport, package |
LIGHTING EFFECTS
DOCUMENTATION
-
General
-
Certificate -
Presentation -
Overall dimensions
-
Dimensional drawing -
For Design
-
IES-files -
3D-models -
Control
-
Connections diagram
COMPATIBLE DEVICES & ACCESSORIES
- CONTROL DEVICES
- LED IPCe/s controller
- USB-Key LIGHTCAD x2/8/32/64/128/512
- USB-ILCS converter
- U-Box 2/4/8 converter
- DMX(B1T2) splitter
- DMX(B4) splitter
- driver 24 V DC
- Mean Well DAP-04 converter
- ACCESSORIES
- shield
- antiglare tubе
- spike for ground/garden applications
- internal hexagonal lattice
