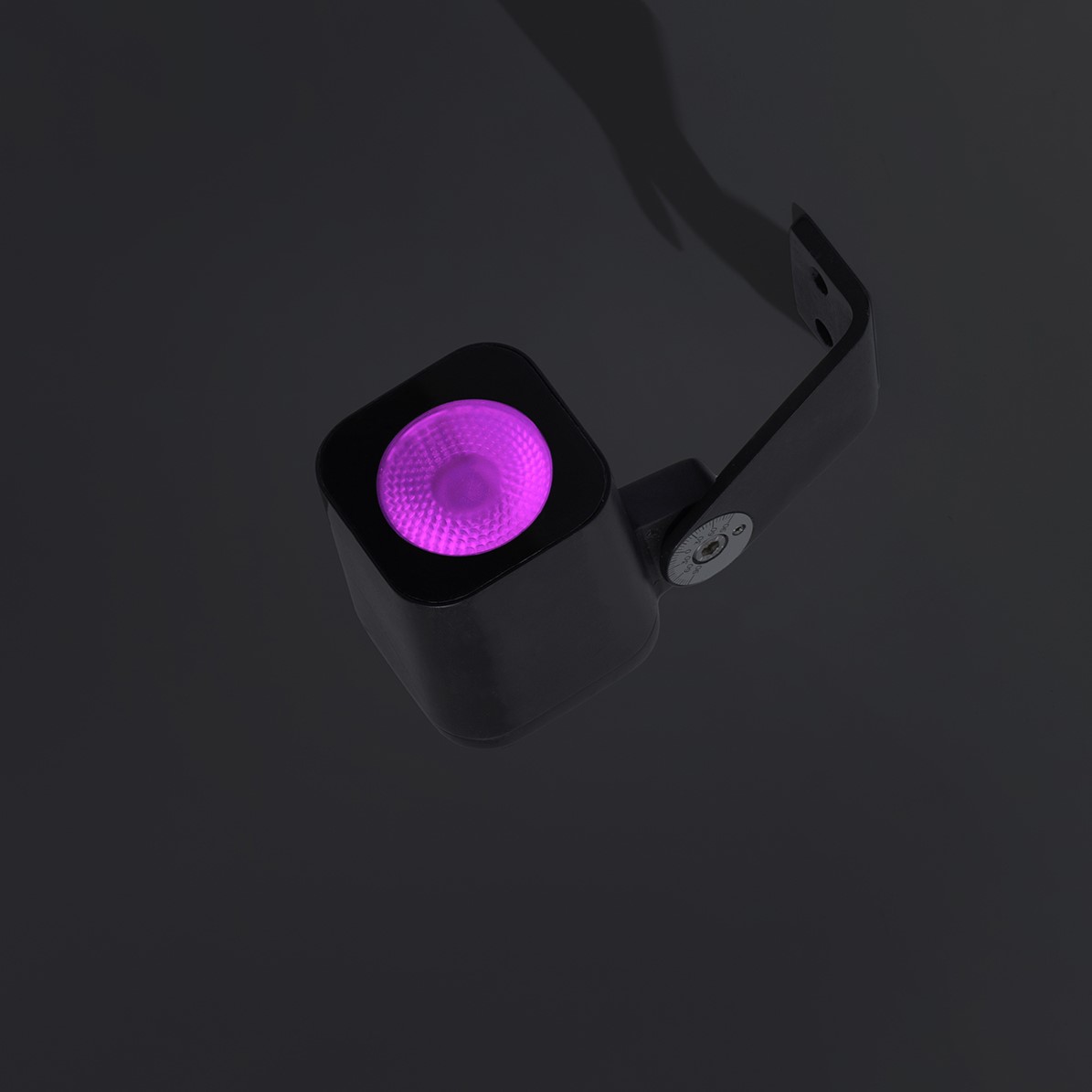

SPOT fullcolor is the new version of IntiSPOT accent luminaire. Now - 16 millions of clear and bright colors in the new super-compact body.
SPOT fullcolor
CHOOSE THE LUMINAIRE
| name* | color | W | lm | optics, deg | datasheet | |
| start typing | choose | choose | choose | choose | ||
| IMF1-3,5FC-15RH(111) | full color | 11 | 270 | 15 |  | |
| IMF1-3,5FC-30RH(111) | full color | 11 | 270 | 30 | | |
| IMF1-3,5FC-40RH(111) | full color | 11 | 270 | 40 | | |
| IMF1-3,5FC-125RH(111) | full color | 11 | 270 | 120 | | |
| IMF1-3,5FC-15x60RH(111) | full color | 11 | 270 | 15x60 | |
TECHNICAL SPECIFICATION
light color: | fullcolor |
optics: | 15°, 30°, 40°, 120°, 15x60° |
luminous flux: | up to 310 lm |
CRI: | ≥80 |
wattage: | 9 W |
voltage: | 230 V AC |
protection class: | IP66 |
operating temperature: | -40°С ... +55°С |
lifespan: | not less than 50000 hours |
control: | DMX-512, DMX-512+RDM |
dimensions: | 97x70x90 - without bracket;
143х69x110 - with bracket |
weight: | 0,6 kg |
materials: | housing, bracket – die-cast aluminum;
diffusor – tempered glass |
mounting: | on an adjustable bracket |
customization: | housing and accessories painted in any RAL color;
IP68 connectors;
control/power cables of any length up to 3 m |
contents of delivery: | luminaire, passport, package |
LIGHTING EFFECTS
DOCUMENTATION
-
General
-
Certificate -
Presentation -
Overall dimensions
-
Dimensional drawing -
For Design
-
IES-files -
3D-models -
Control
-
Connections diagram
COMPATIBLE DEVICES & ACCESSORIES
-
CONTROL DEVICES
-
LED IPCe/s controller
-
USB-Key LIGHTCAD x2/8/32/64/128/512
-
USB-ILCS converter
-
U-Box 2/4/8 converter
-
DMX(B1T2) splitter
-
DMX(B4) splitter
-
driver 24 V DC
-
Mean Well DAP-04 converter
-
ACCESSORIES
-
shield
-
antiglare tubе
-
spike for ground/garden applications
-
internal hexagonal lattice
